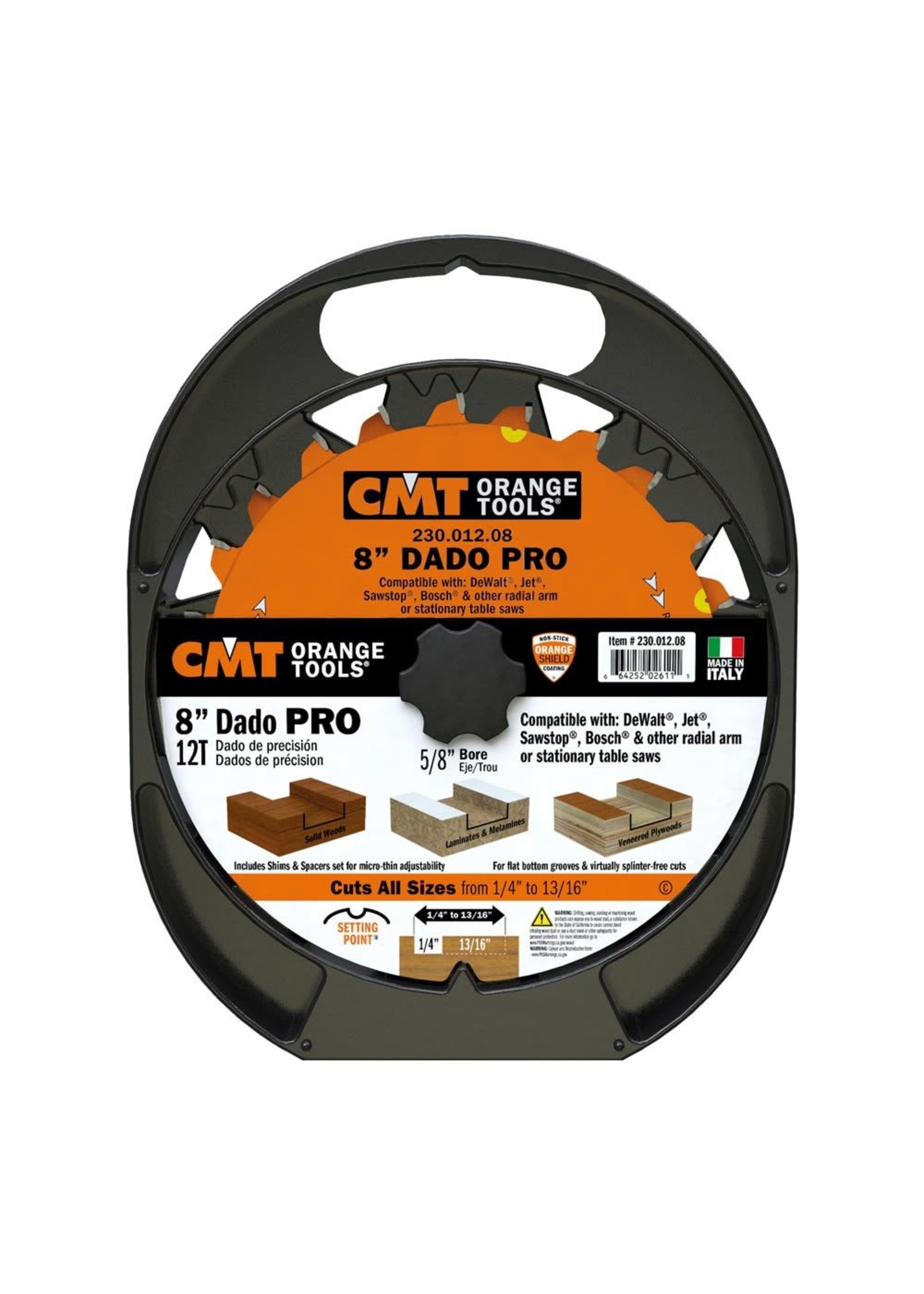

CMT designed this new Dado Precision Set with the following features:

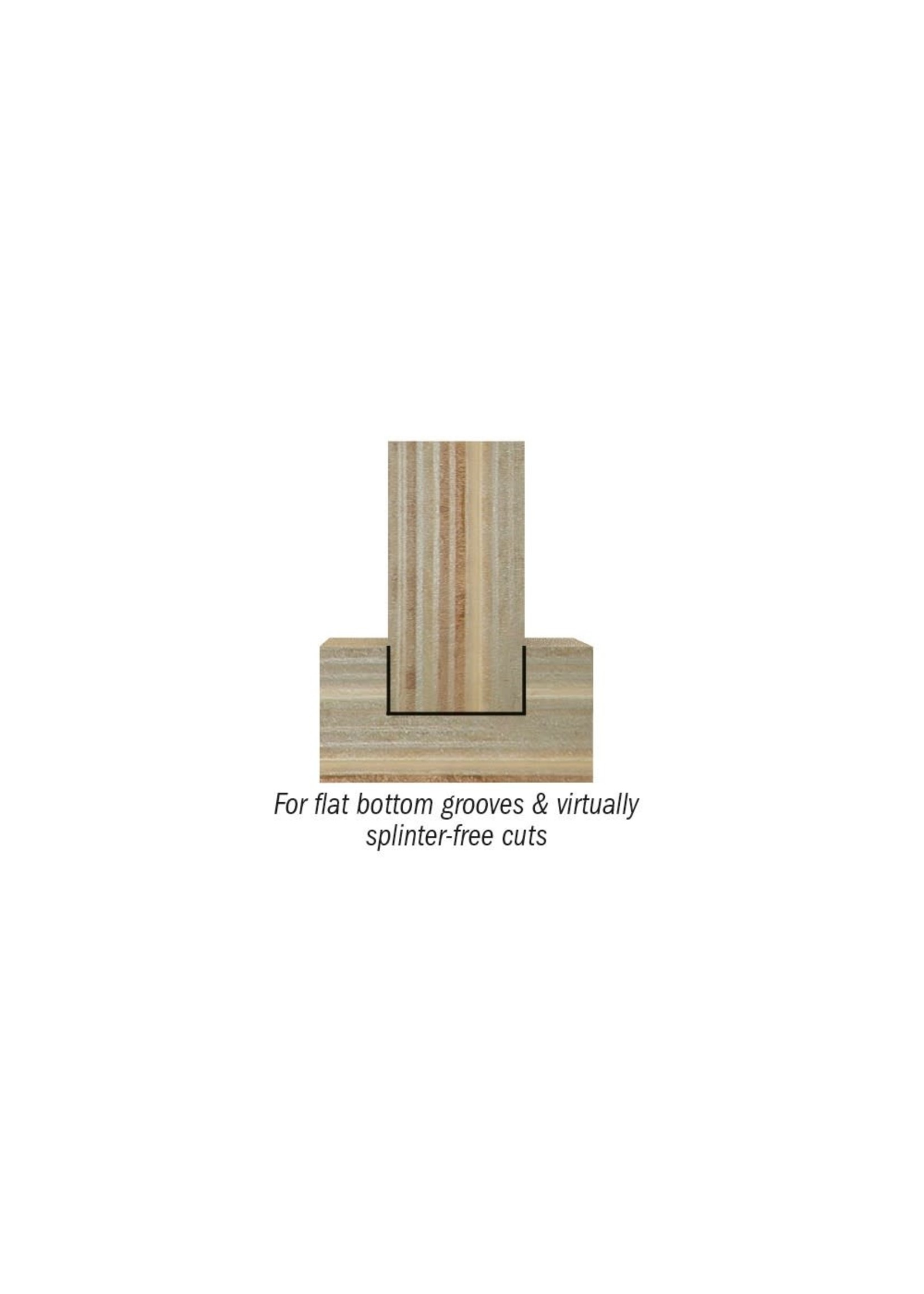

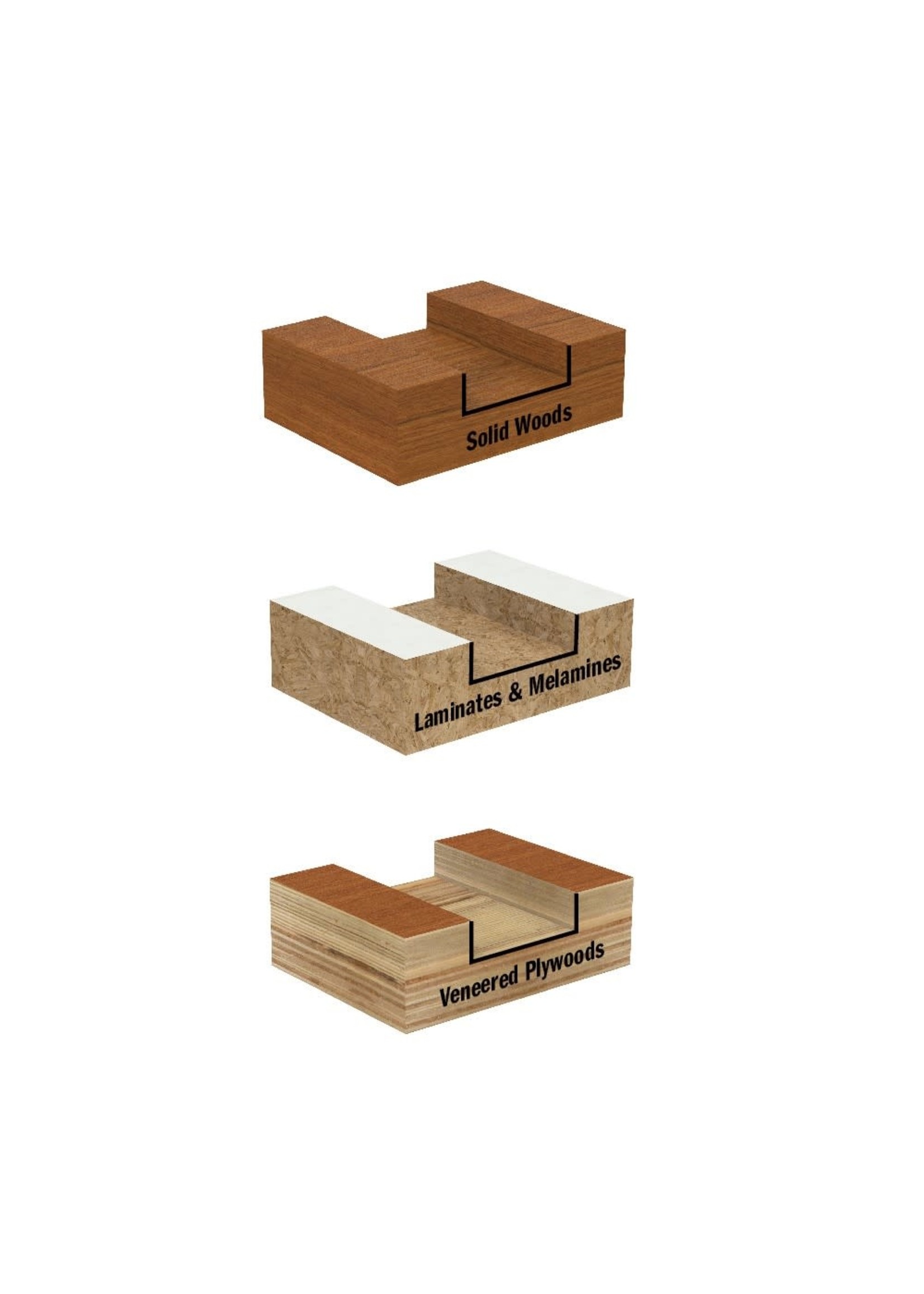

• Ideal for tongue & groove, shelving and rabbets in in solid wood, laminates & melamines, veneer plywood.
• Orange Shield Coating protect from heat, gumming and corrosion.

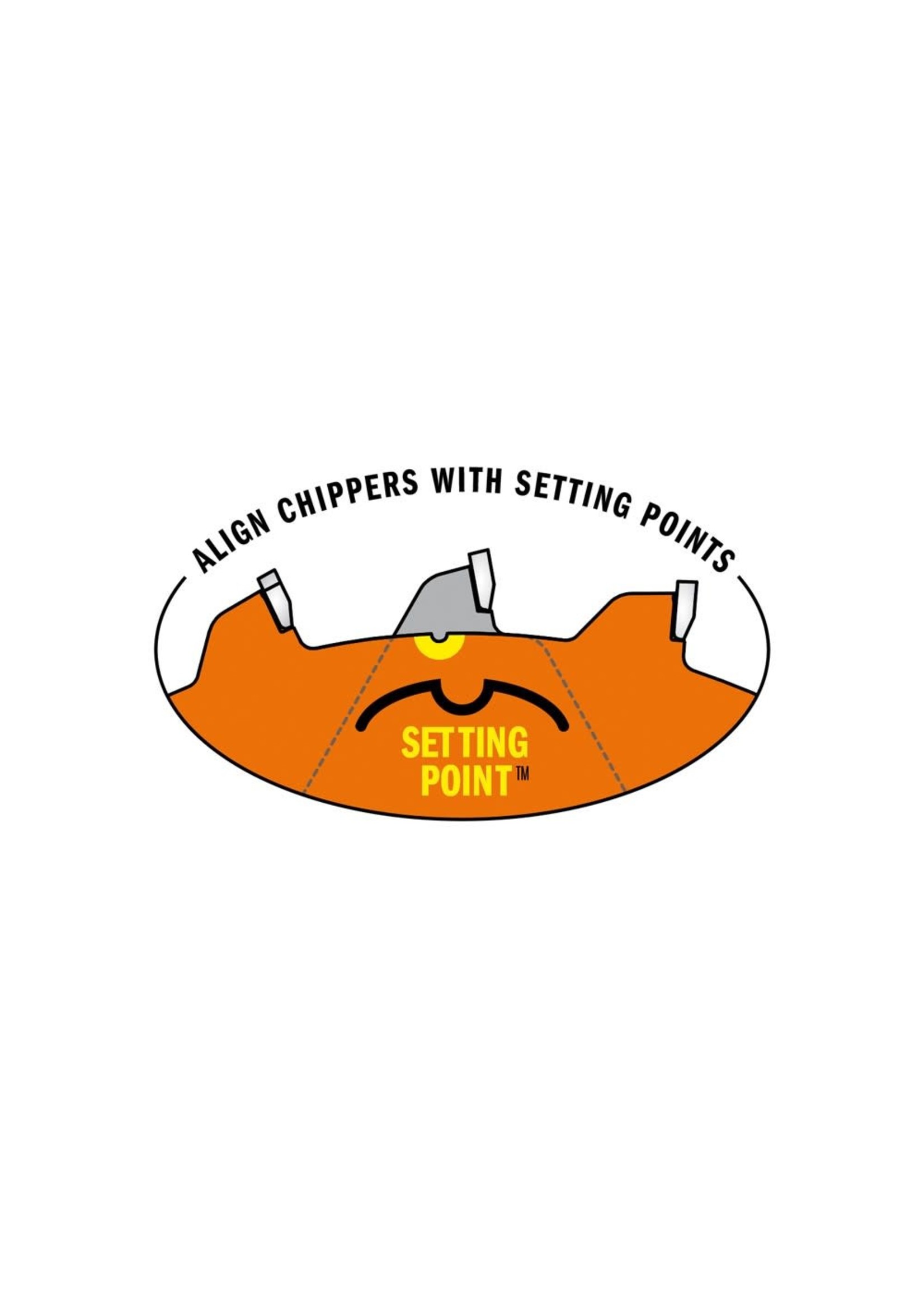

• New Setting Points for chippers alignment.

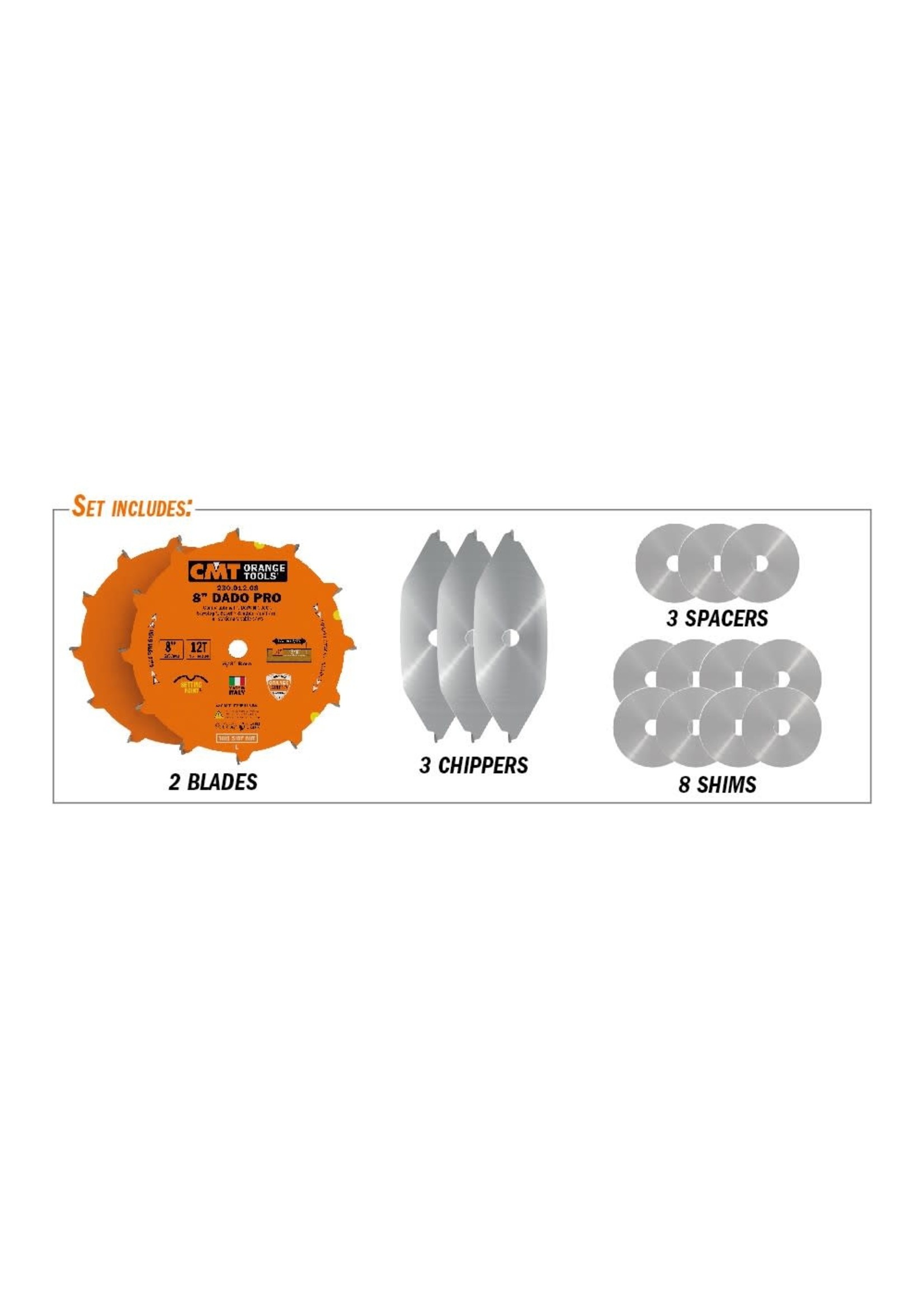

• Includes shims and spacers set for micro-thinadjustability

3 total chippers: 3 x 1/8”

3 total shims: 3 x 1/16"

8 total shims: 5 x 0.004", 1 x 0.008", 1 x 0.012" , 1 x 0.020"

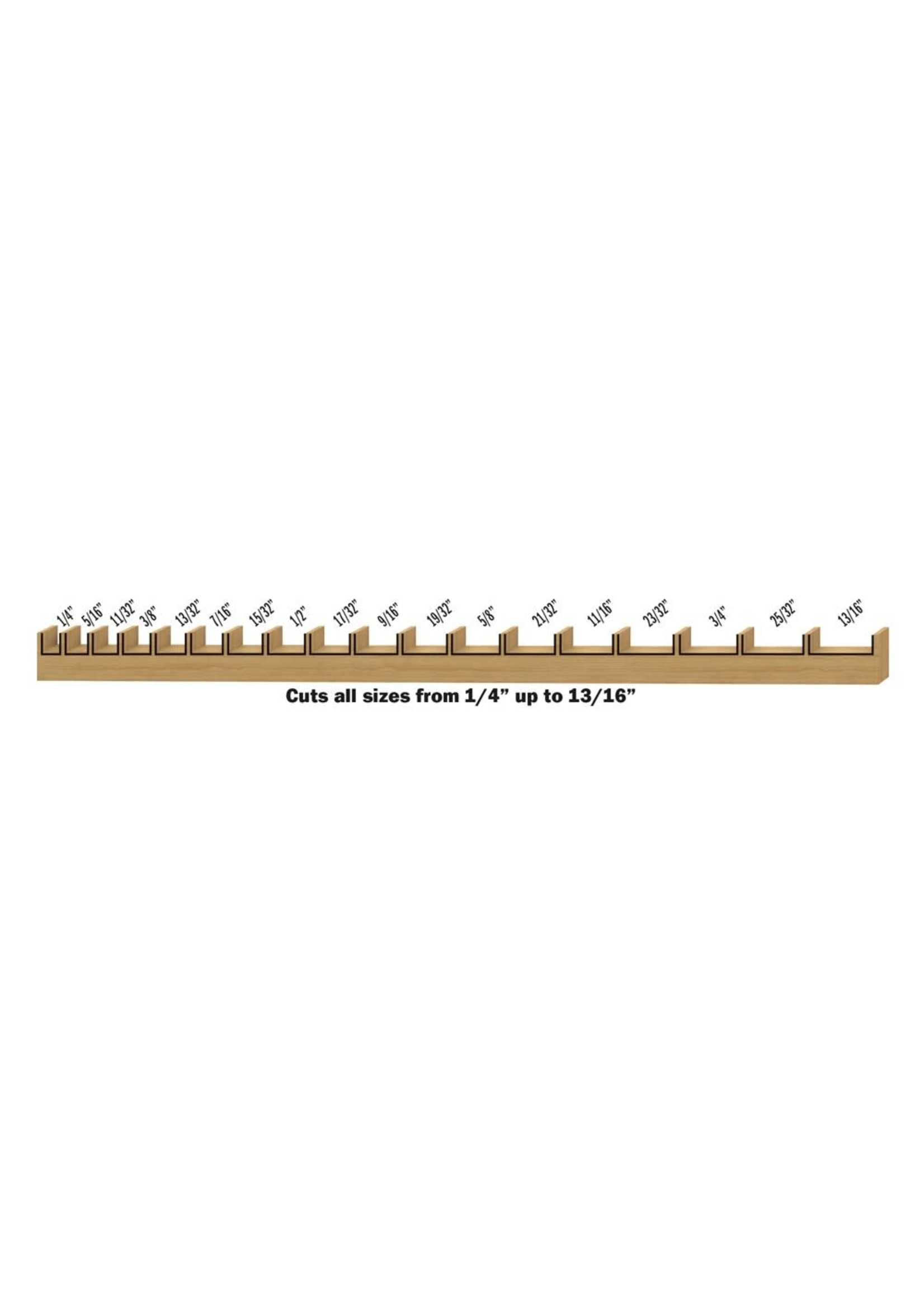

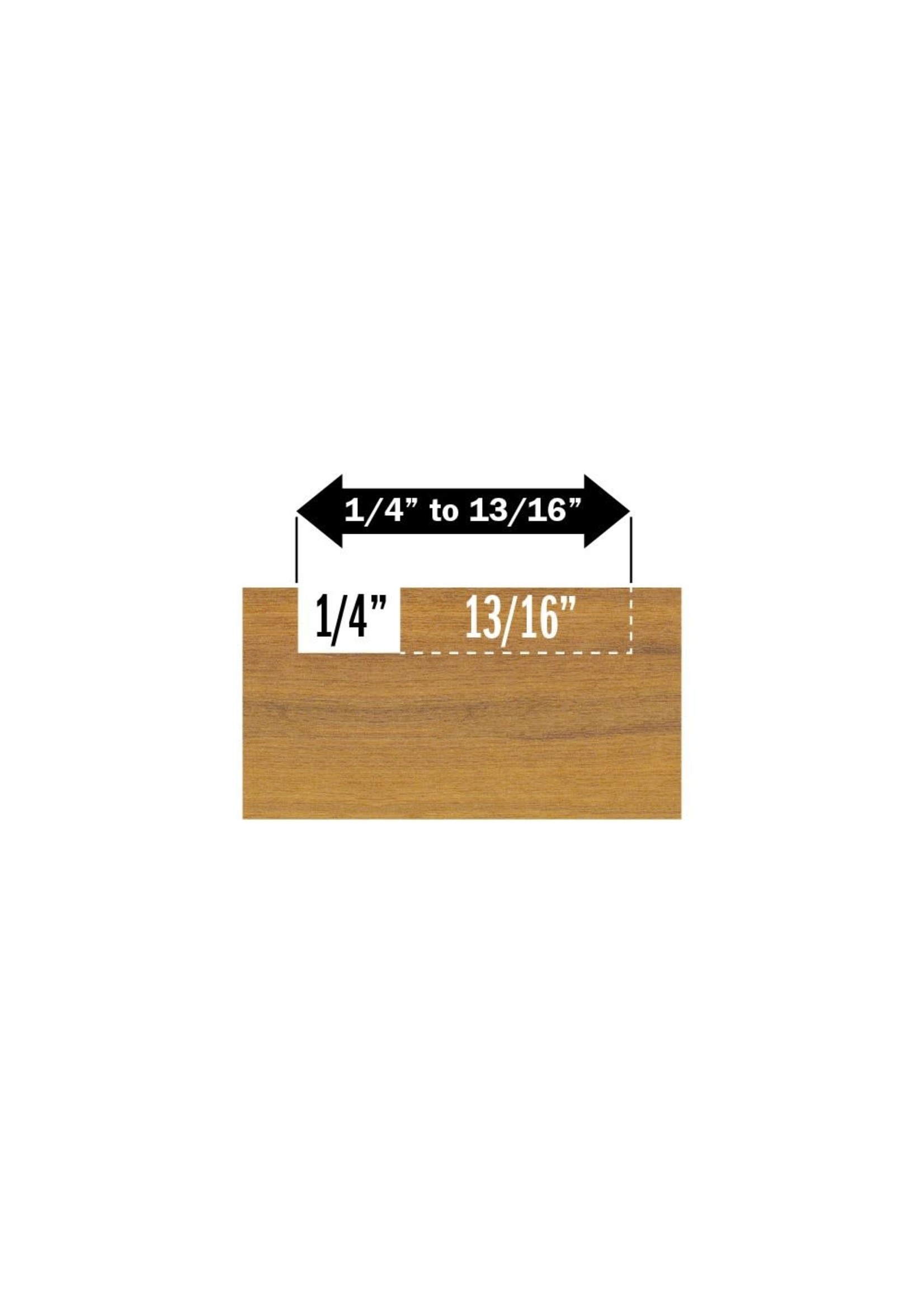

Able to cut dados from 1/4" to 13/16"

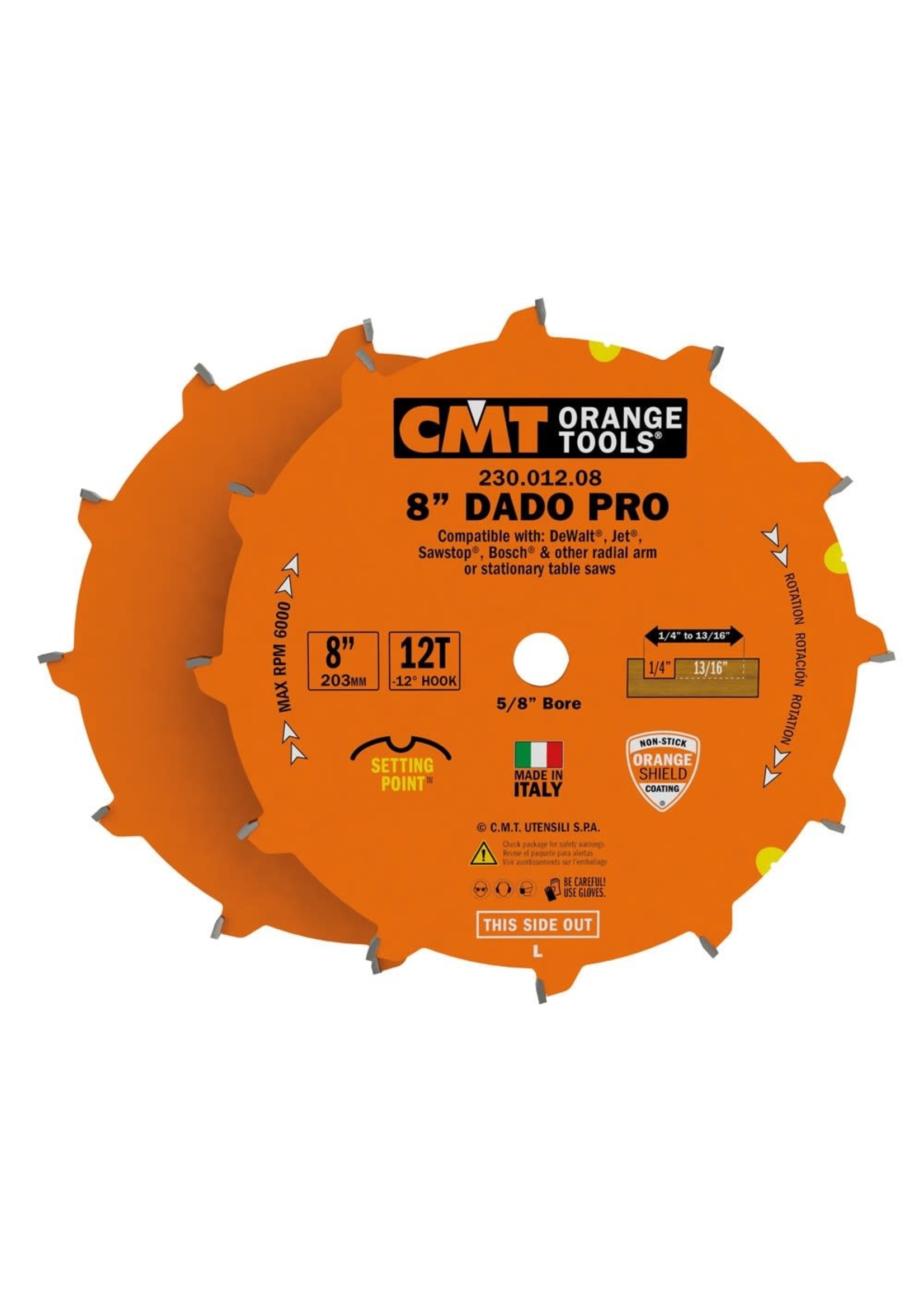

Model number: 230.012.08

Applications: shelving, tongue & groove, rabbets

Machines: table saw, radial arm saw

Material: softwood, hardwood, plywood, melamine

Finish quality: “Excellent” for ripping wood and plywood and “Good” for ripping and crosscutting plywood

Size: 8”

Bore: 5/8”

Teeth: 12

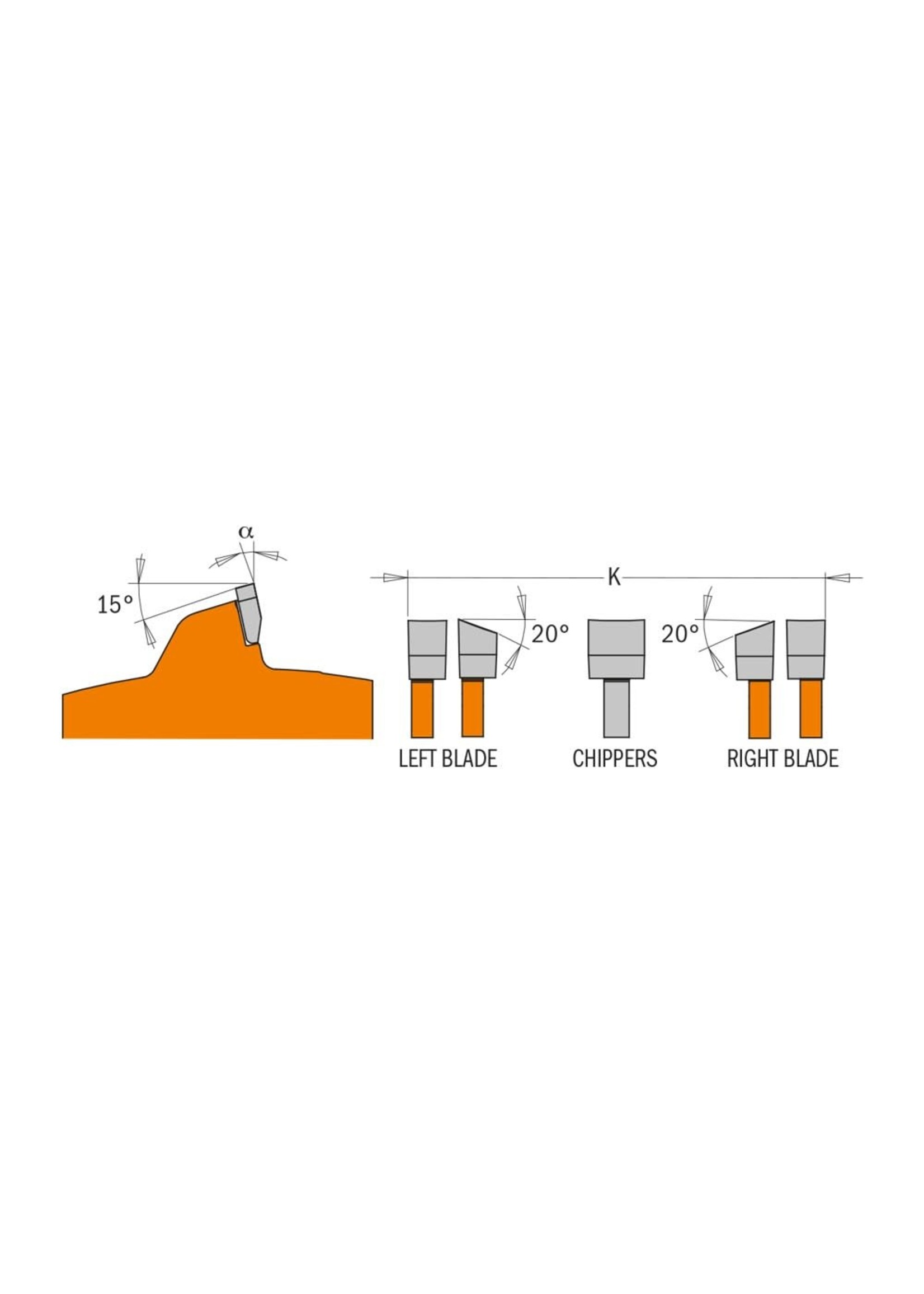

Grind: chippers are flat top grind and blades are flat top grind and alternate top bevel

Tooth hook angle: -12 degrees
