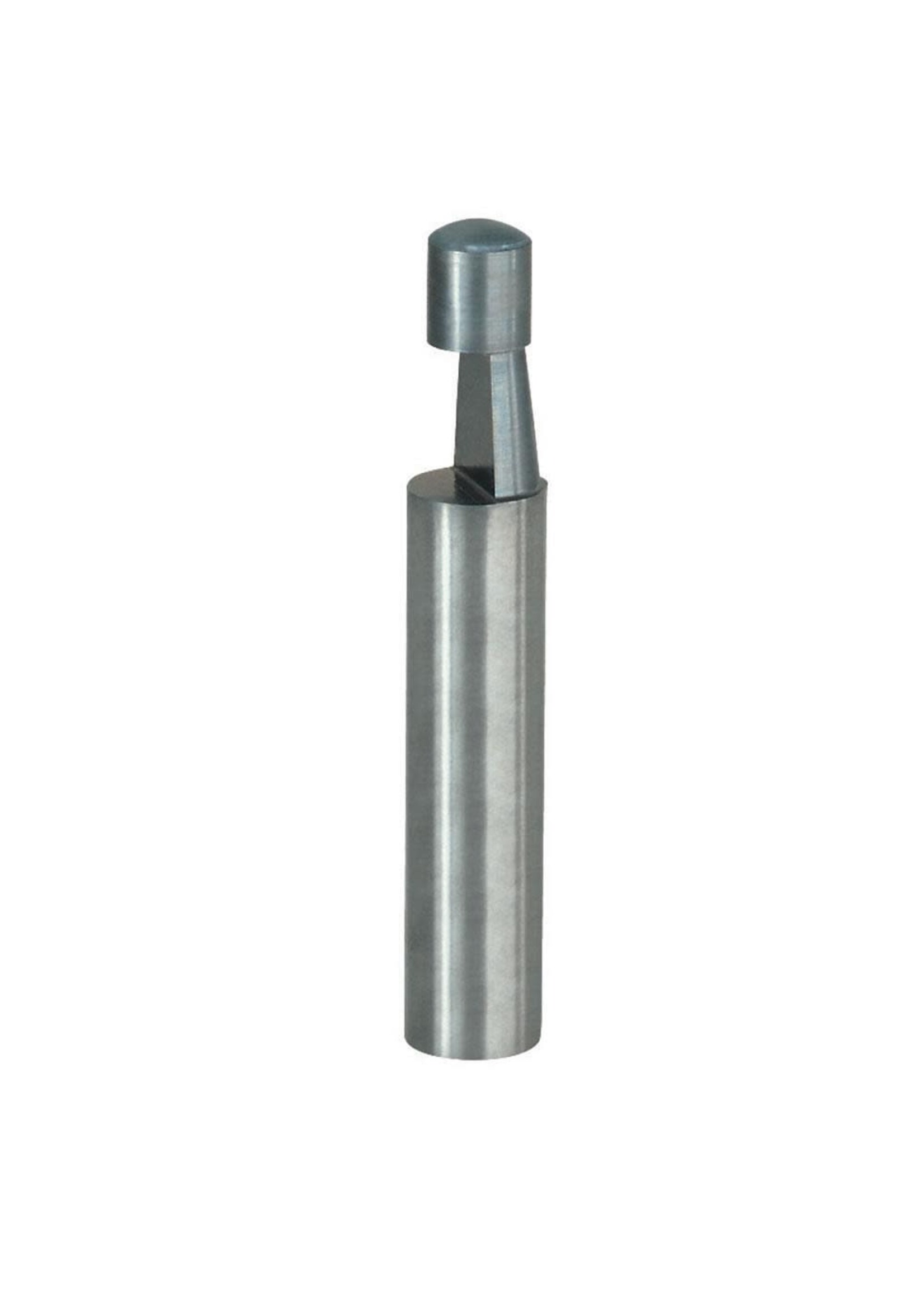

  • Freud/Diablo 1/4" Bevel Trim Bit 66-100

1/4" Bevel Trim Bit 66-100

$15.00
Excl. tax

Routing a clean, finished edge on plastic laminates

The rating of this product is 0 out of 5

 (0)
In stock
swap-horizontal Add to compare

PRODUCT

OVERVIEW



Bevel Trim Bits produce a clean, finished edge on plastic laminates with little or no filing. Choose among bevel angles from 8 degrees to 45 degrees in the 41-series bits, which also include a ball bearing guide. Or choose the solid carbide 66-100 for a 7 degree bevel in a very cost effective tool.

  • Black I.C.E. coating for cool cutting edge and superior chip evacuation
  • Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
Ideal For: Fast bevel trim of plastic laminate

TECHNICAL SPECIFICATIONS
ANGLE (D) 7°
BEARING DIA. (B) 3/16"
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 1/4"
OVERALL LENGTH (H) 1-1/2"
SHANK DIA. (A) 1/4"
CARBIDE HEIGHT (H) 1/4"
MAX RPM 24000


UPC CODE:008925381280

SUPPLIER PART#66-100
